Semiconductor Quartz Parts & Components

Global TechSolutions supplies fabricated quartz parts and quartzware for front-end semiconductor processing applications. Our quartz component range covers thermal processing, etch, epitaxy, thin film, wet clean, lithography and metrology requirements.

Components can be reviewed against part drawings, dimensional requirements, material specifications and application conditions.

Where required, ZEISS metrology can be used for dimensional verification of quartz parts to ensure quality assurance.

Quartz process component

Quartz Parts By Process

Lithography

01

Quartz parts used for optical and process-interface applications within lithography processes.

Quartz Disc Quartz Optical Window

Etch

02

Quartz parts used around process chambers, gas delivery and optical access in etch applications.

Quartz Disk Quartz Gas Injector TCP Window OES Window Quartz Ring Quartz Edge Ring Quartz Cover Ring Quartz Shadow Ring

Diffusion

03

Quartzware used around high-temperature wafer processing, wafer loading and related furnace assemblies.

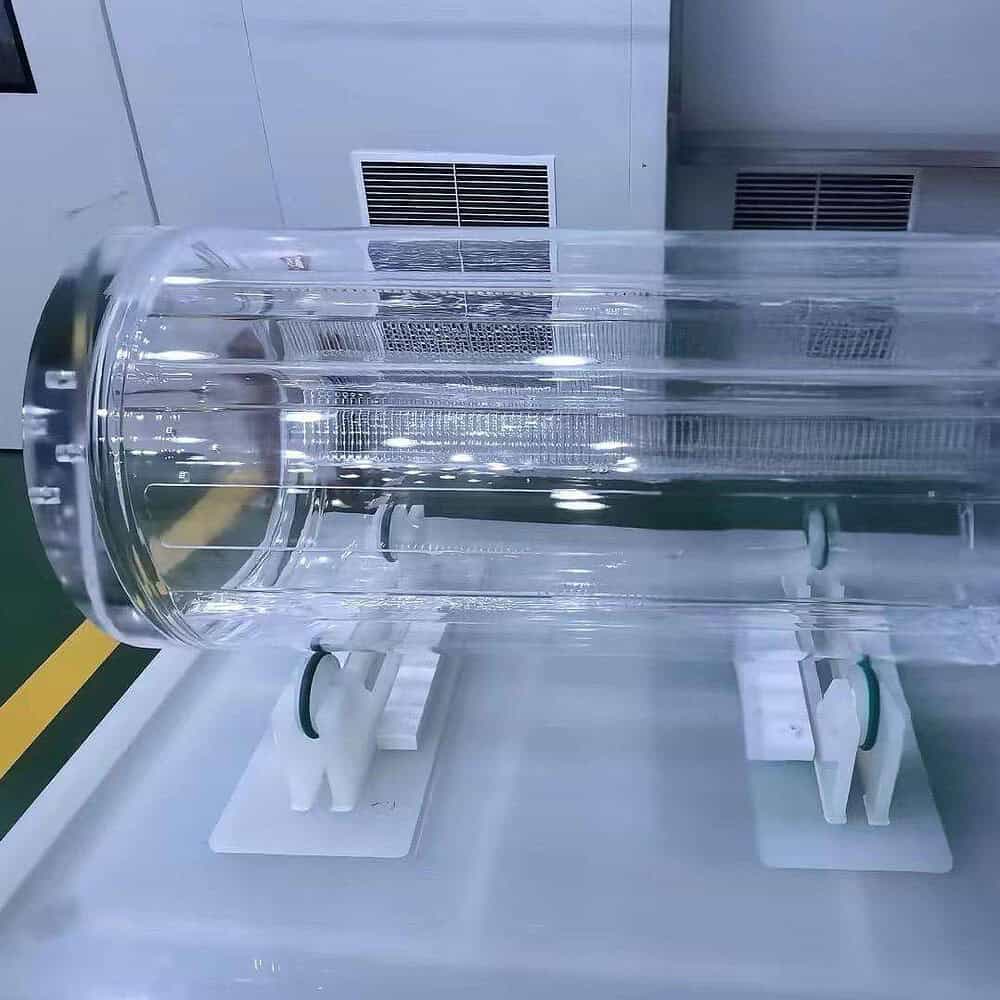

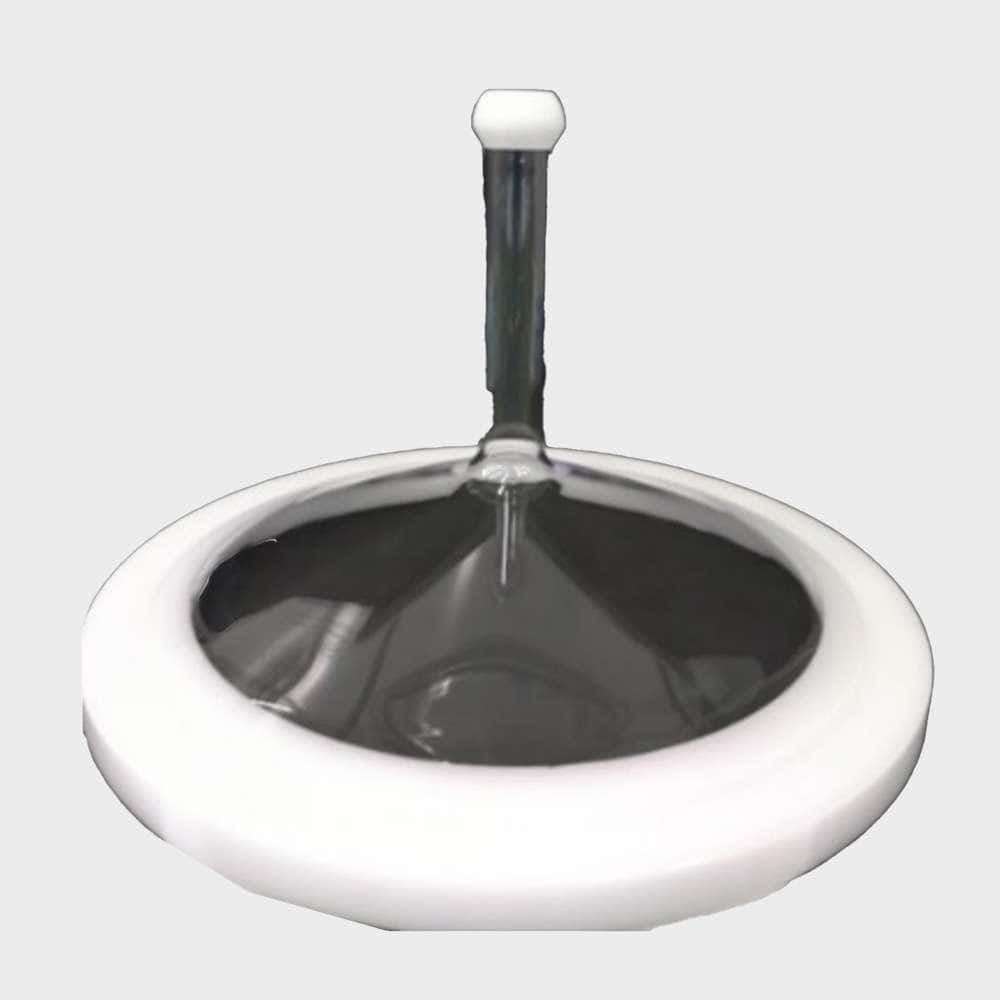

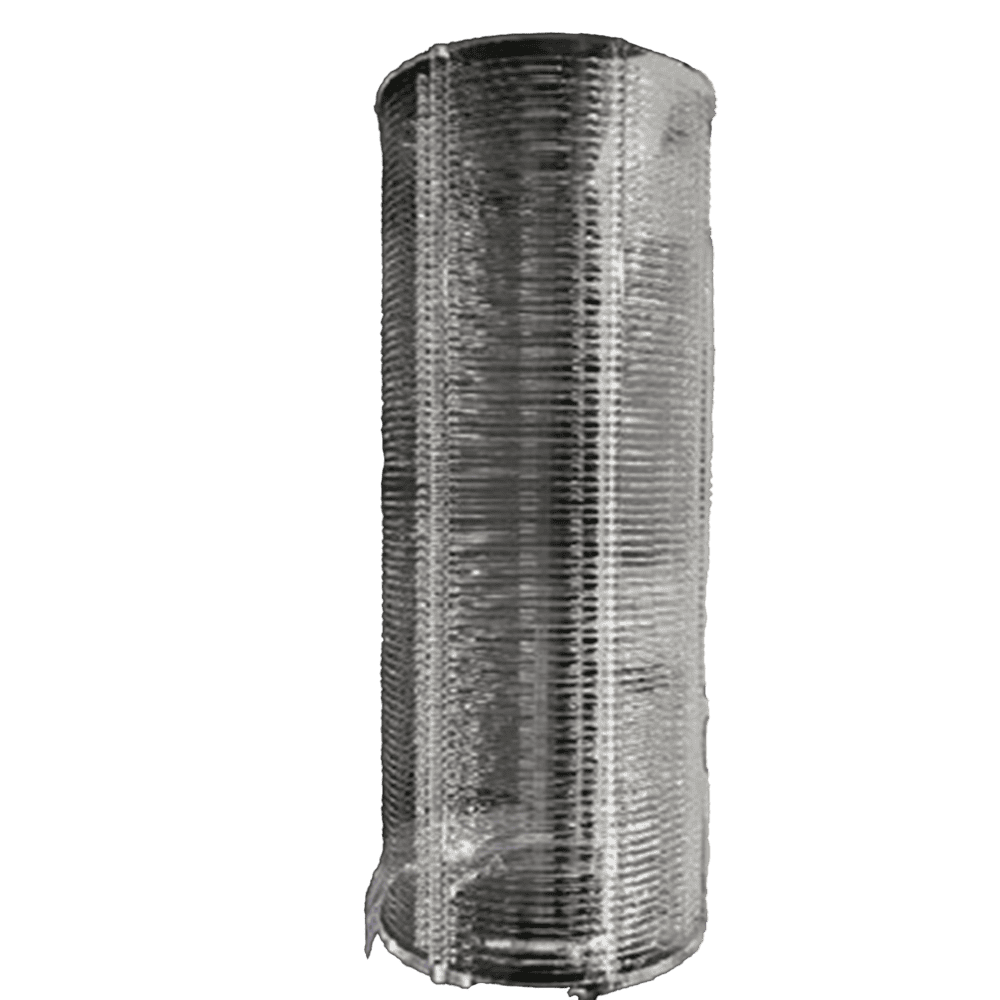

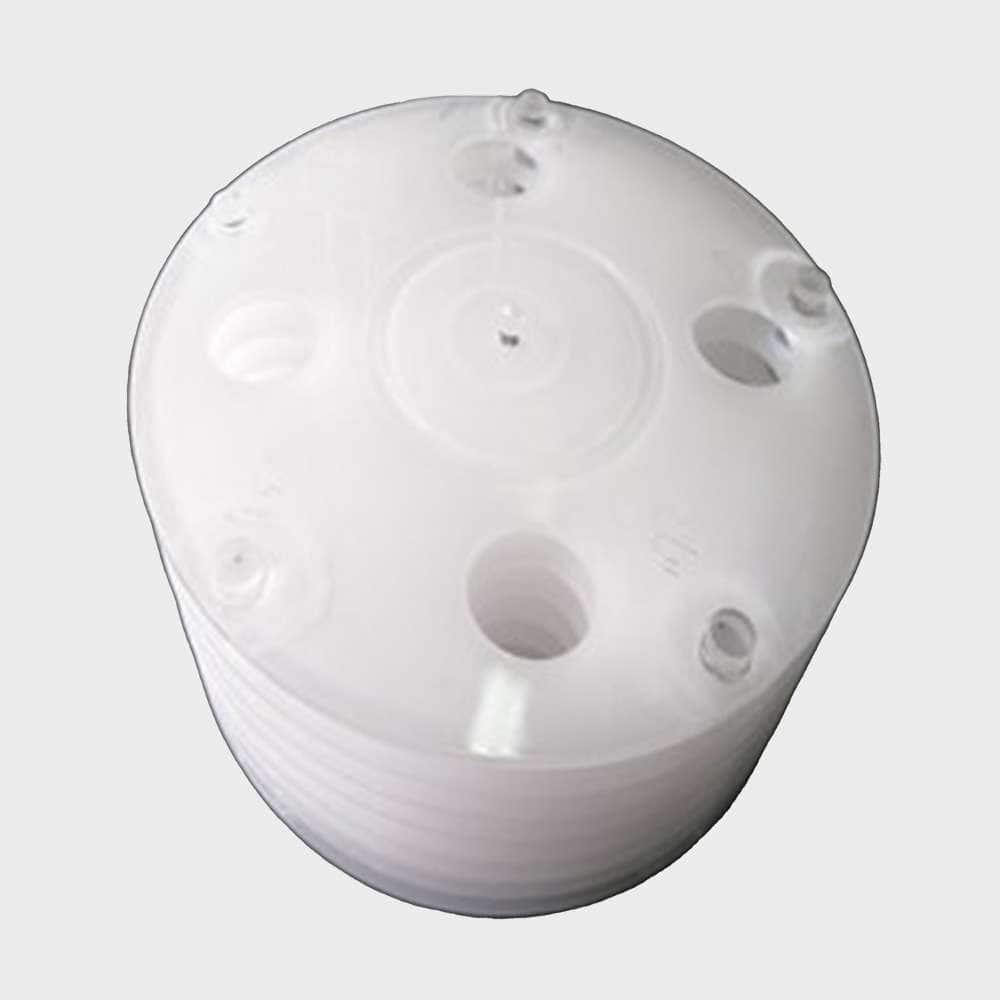

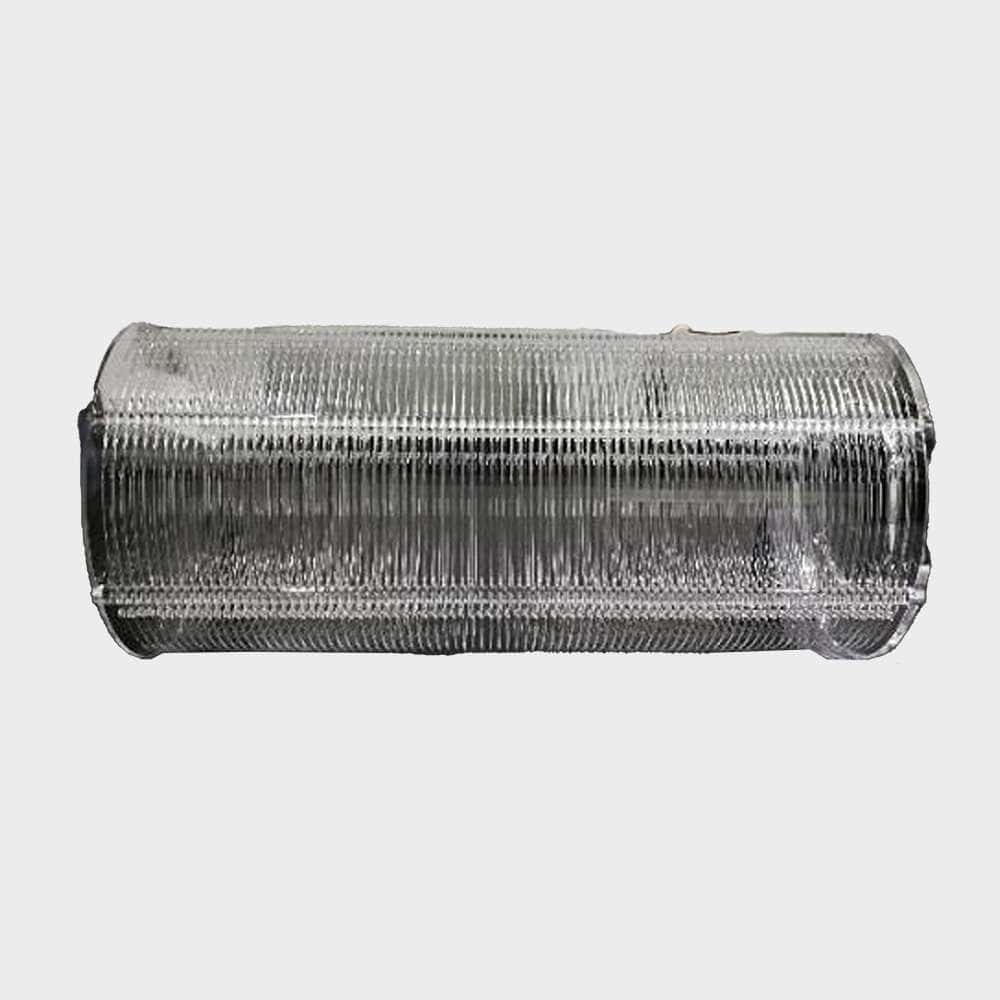

Quartz Process Tube Outer Tube Inner Tube Boat Quartz Ring Boat Quartz Pedestal Quartz Fin Torch Chamber Injector Quartz Shutter Bell Jar Thermocouple Sheath

Epitaxy

04

Quartz components used around epitaxy process chambers and related chamber assemblies.

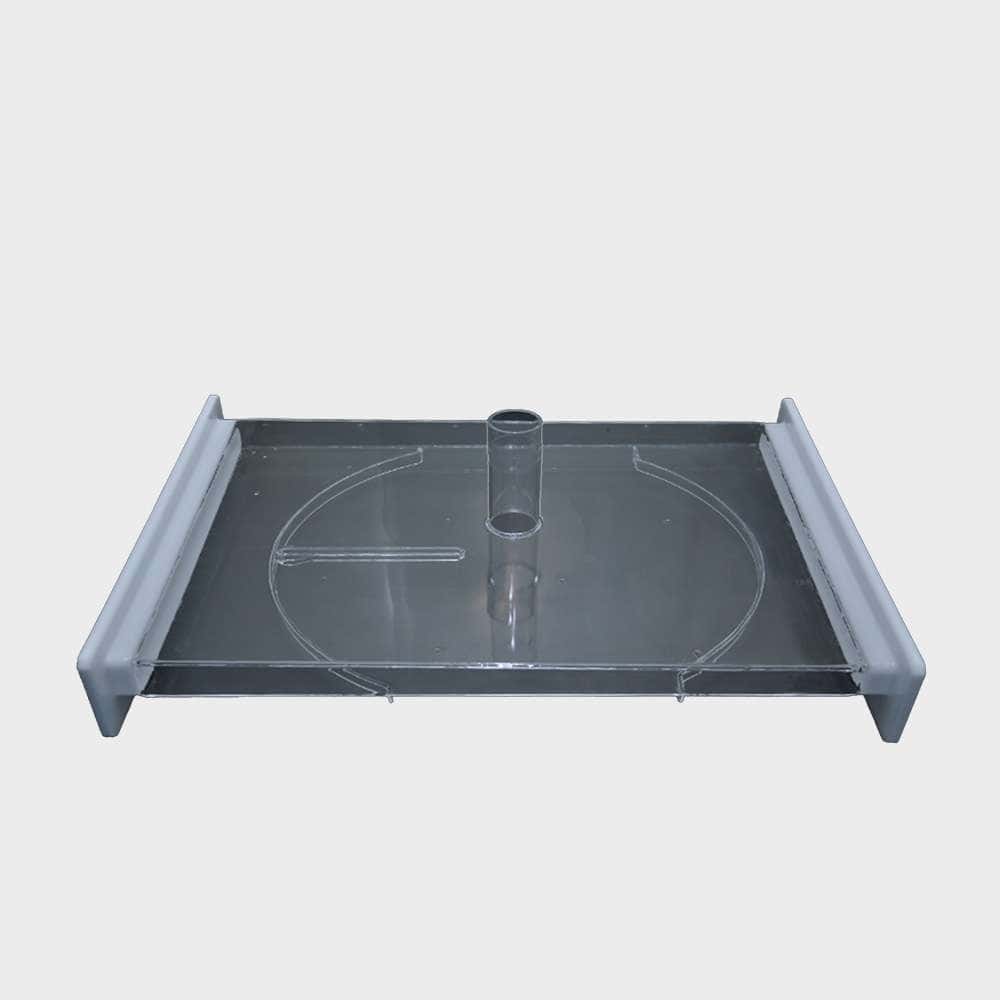

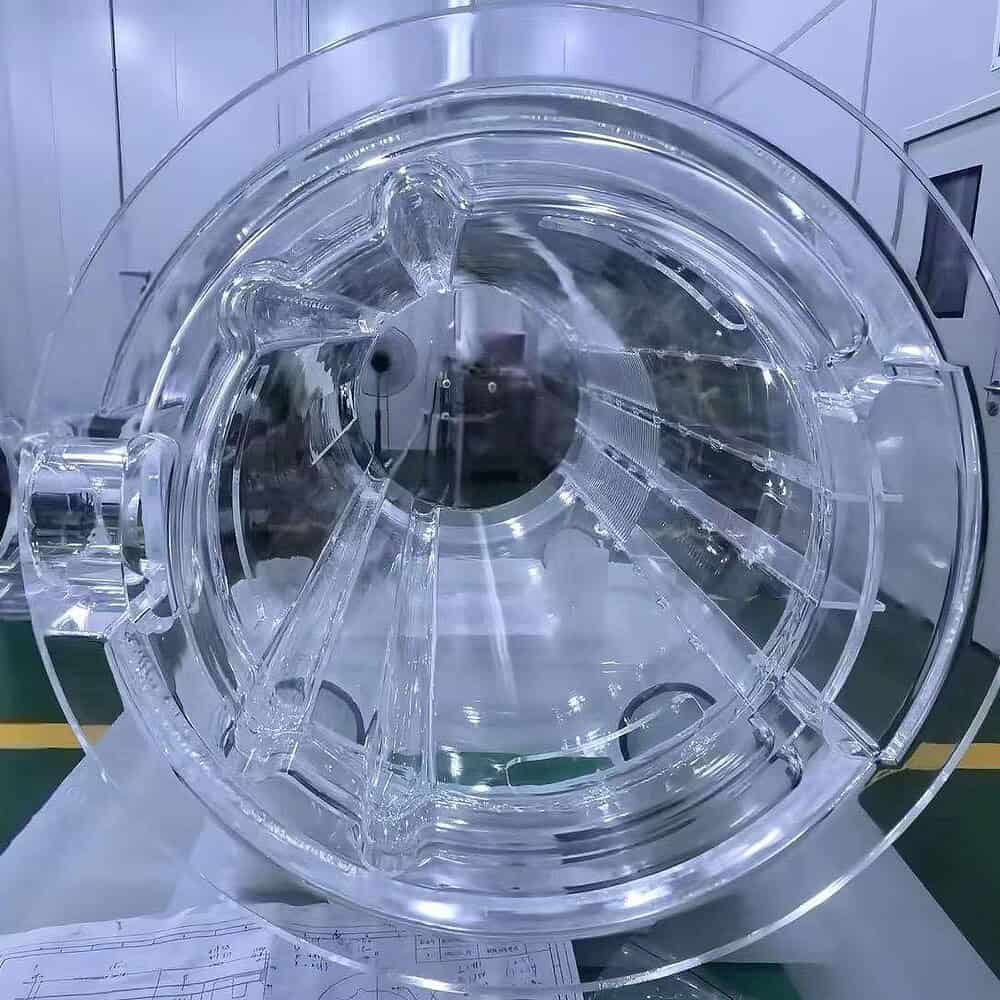

Golden Chamber Quartz Chamber Dome Upper Dome EPI Lower Dome Linear Shaft Insert Baffle

Wet

05

Quartzware used in wet-processing and chemical-handling applications.

SC2 Tank SPM Tank QDR Tank Lifter Guide Chuck Cassette

Thin Film

06

Quartz components used in thin-film and deposition-related process assemblies.

Quartz Blade Quartz Plate Supporting Disc Barrier Quartz Ceiling Quartz Diffusion Pin Quartz Locking Piston

Metrology

07

Quartz optical components used in semiconductor metrology applications.

Quartz Optical Window

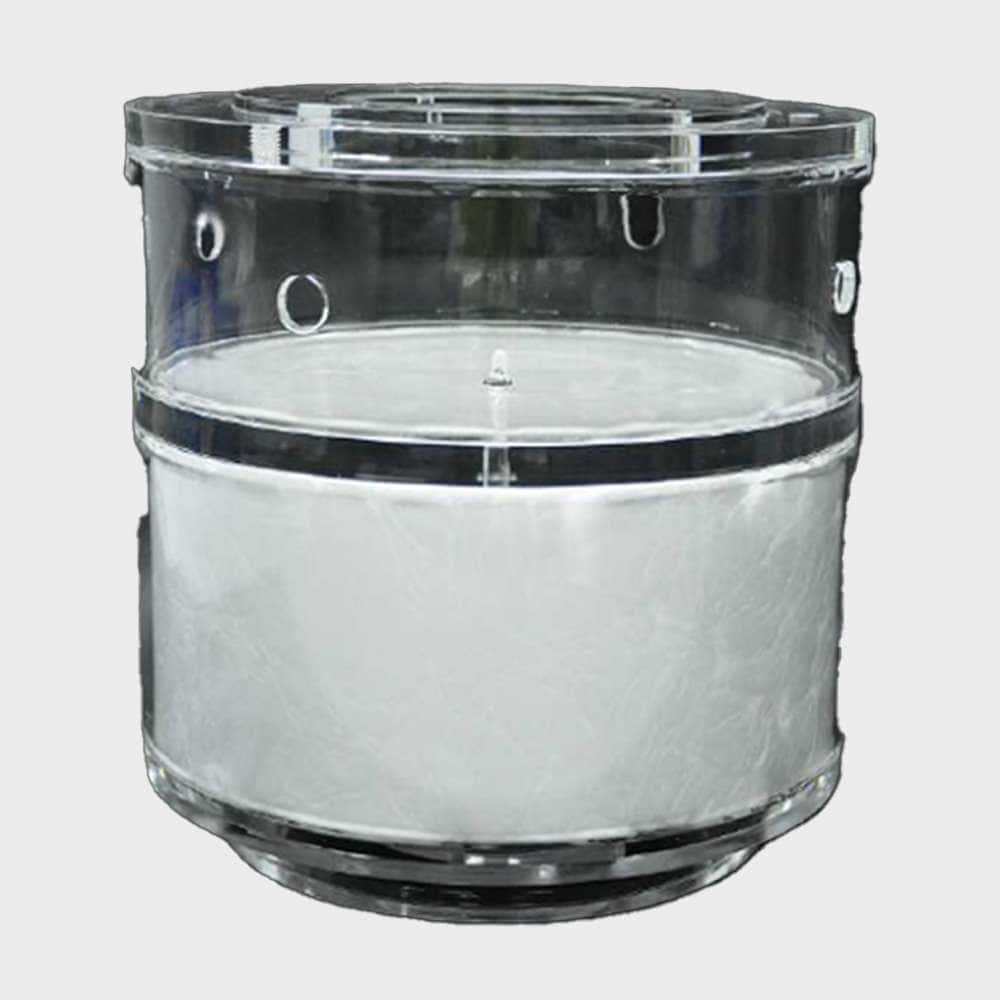

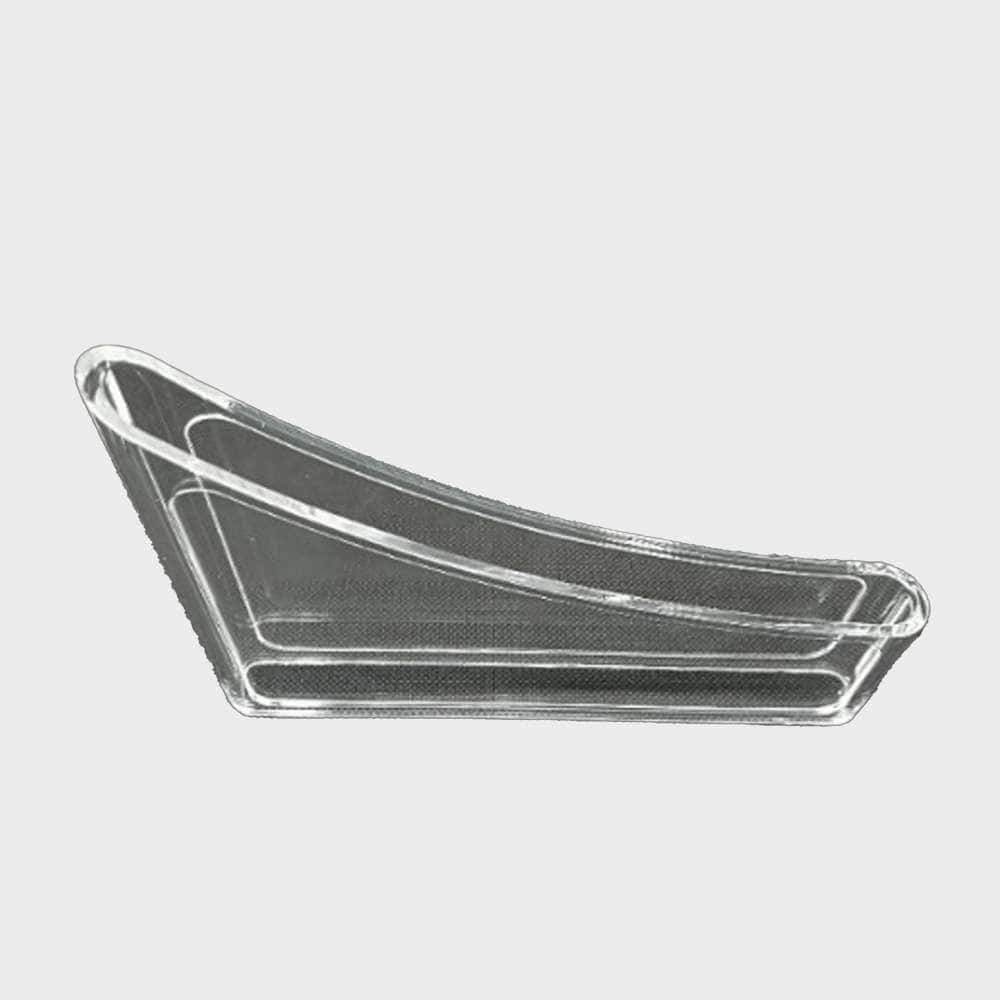

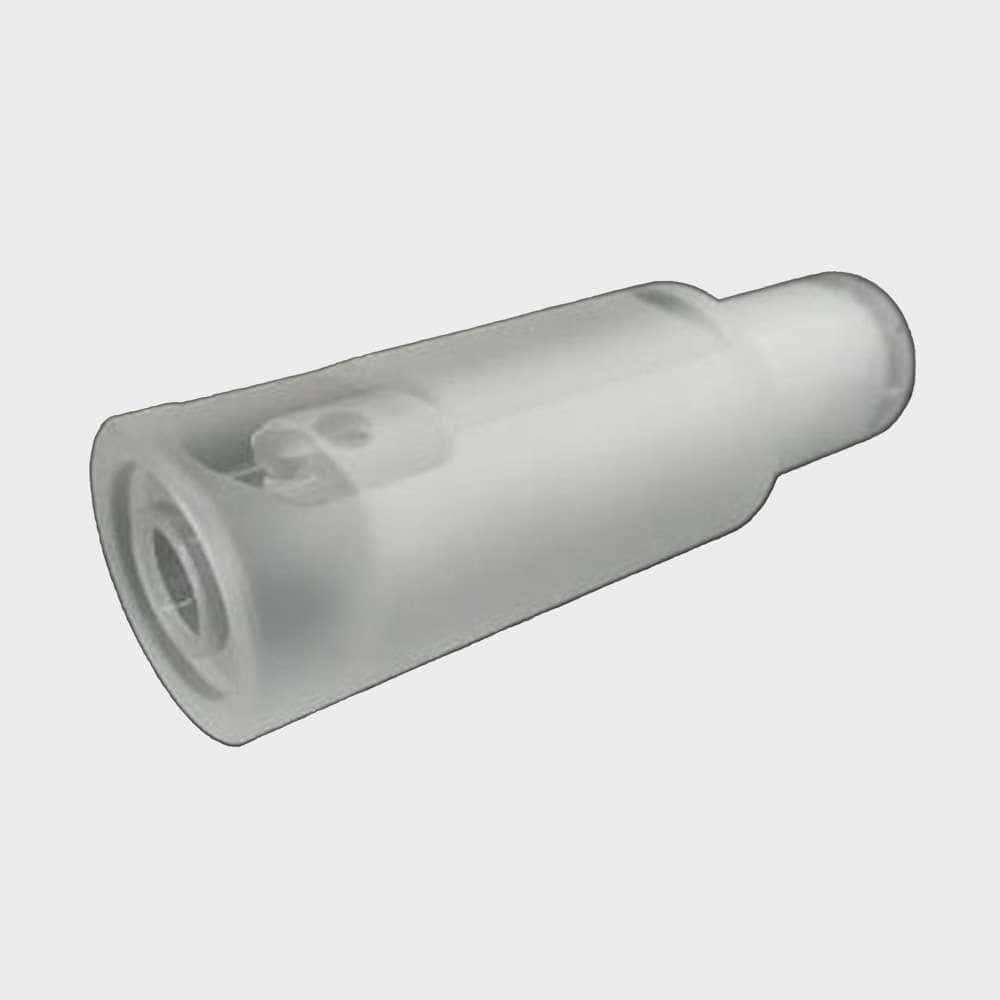

Quartz Parts Gallery

Quartz Component Requirements

01

Drawing Or Sample

Provide a drawing, dimensional sketch, existing sample or available part information for component review.

02

Material Requirement

Confirm the required quartz or fused-silica grade, purity requirement and relevant process conditions where known.

03

Dimensions & Finish

Identify critical dimensions, tolerances, slots, holes, polished surfaces and other geometry that must be maintained.

04

Cleaning & Packaging

Specify any cleaning, inspection, handling or packaging requirements needed for the intended semiconductor application.
